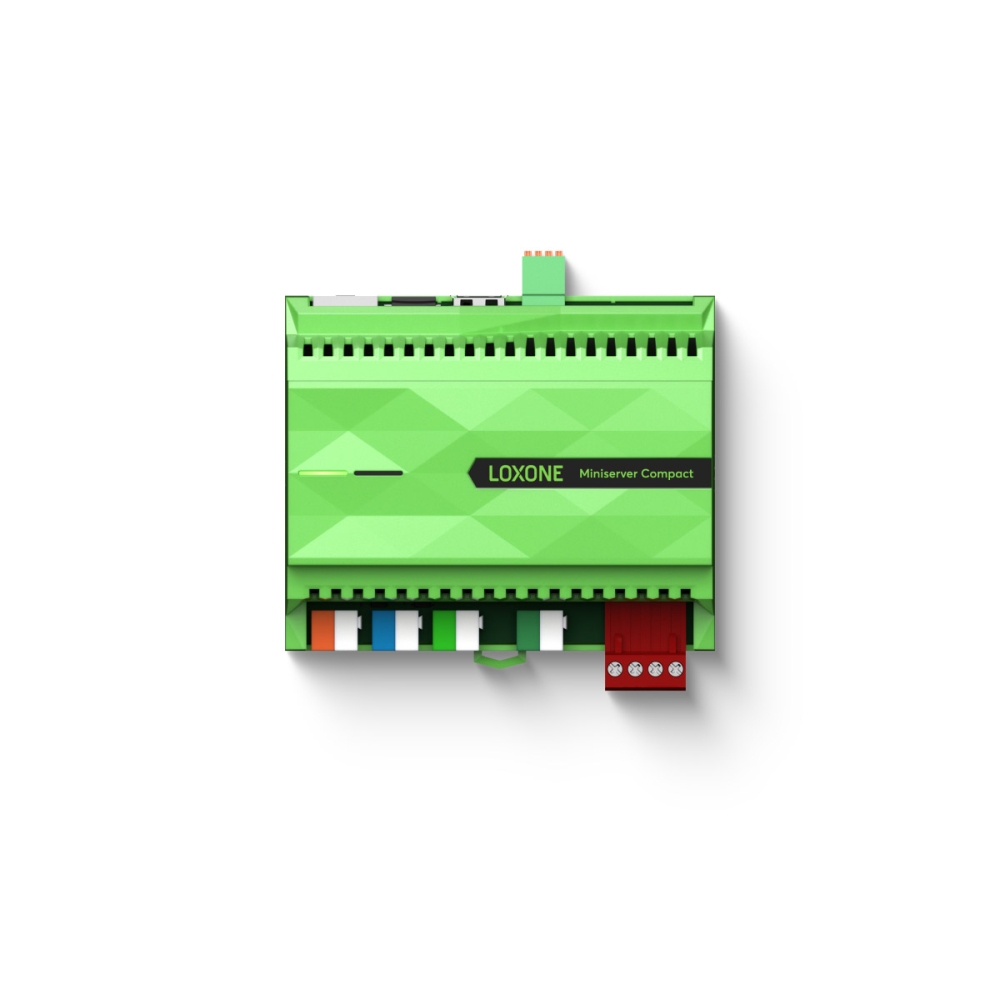

Loxone Miniserver Compact de înaltă performanță, cu un design compact - special pentru cutii de distribuție mai mici. Miniserver Compact are deja încorporate tehnologiile Loxone Air, Tree și Tree Turbo și software-ul Audioserver integrat. Acest lucru îl face un dispozitiv multimedia complet.

Features:

• 4 digital inputs
• 2 digital relay outputs, potential-free
• Loxone Link, switchable to Tree in software: up to 30 Extensions or 50 Tree devices
• Loxone Tree: up to 50 Tree devices
• Loxone Tree Turbo: up to 10 Tree Turbo devices
• Loxone Air: up to 128 Air devices

Technical details:

Product dimensions:

106.4x88x59mm / 4.19x3.46x2.32” (LxWxH), 6 division units

Technical Data

Power Supply

12 … 30VDC (Relays work above 19.2V)

Power consumption

typ. 2.4W, max. 4.3W

Power loss at max. load

8.4W

Digital Inputs

4 digital inputs: logic 0: 0 ... 4.5VDC undefined: 4.6 ... 5.9VDC logic 1: 6 ... 30VDC Ri=45kΩ

useable as frequency counter: frequency: 1 ... 500Hz min. pulse width: 2ms accuracy: +/- 1Hz

Relay Outputs

2 digital relay outputs, dry contact: 250VAC 16A* at cosᵠ =1 or 30VDC 16A* *Load > 12A: 2.5mm² / AWG12

Power reserve of internal clock

64 hours

Interfaces

Loxone Link

Switchable to Tree in software: up to 30 Extensions or 50 Tree devices, max. 500m

Loxone Tree

up to 50 Tree devices, max. 500m

Loxone Tree Turbo

up to 10 Tree Turbo devices, max. 150m

Loxone Air

up to 128 Air devices 868MHz (SRD Band Europe), 4 channels, max. 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels, max. 13.2mW

internal antenna

Ethernet

100Mbps, IPv4/IPv6, HTTPS, SSL/TLS
TCP/IP, Modbus TCP, UDP

USB

USB 2.0: Type A, max. 500mA

Ambient Conditions

Temperature

0 ... 50 °C / 32 ... 122 °F

Humidity

max. 95 % r. h. (non-condensing)

Music Playback

Streaming

AirPlay 2, Spotify, TuneIn, internet streaming services, NAS

Compatible USB Drives

USB Flash drives: FAT32/NTFS, single partition, max. 2TB

USB Harddrives: FAT32/NTFS, single partition, max. 2TB, max. 500mA power consumption

Audio-filestypes Sample rate

MP3, AAC, ALAC, Flac, WMA, WMA lossless, WAV, M4A, OGG up to 192kHz

Connection Terminals

Terminal type

DC Supply, Link, Tree, Tree Turbo: DG220B

Digital Inputs: FMC 0.5

Relay Outputs: MSTB 2.5 HC

Wire cross-section

DC Supply, Link, Tree, Tree Turbo: 0.28 … 0.8mm² AWG23 … 18

Digital Inputs: 0.14 ... 0.5mm² AWG26 ... 20

Relay Outputs: 0.2 … 2.5mm² / AWG24 … 12 Load > 12A: 2.5mm² / AWG12

Stripping length

DC Supply, Link, Tree, Tree Turbo: 5 … 6mm 0.2 … 0.24"

Digital Inputs: 7mm / 0.28"

Relay Outputs: 7mm / 0.28"

Tightening torque

DC Supply, Link, Tree, Tree Turbo: -

Digital Inputs: -

Relay Outputs: 0.5 ... 0.6Nm / 0.37 ... 0.44 lbf ft

Temperature resistance

DC Supply, Link, Tree, Tree Turbo: -40 … 105°C / -40 … 221°F

Digital Inputs: -40 ... 70 °C / -40 ... 158°F

Relay Outputs: -40 ... 70 °C / -40 ... 158°F

Product Characteristics

Mounting type

DIN rail according to EN 50022, 35 mm

Colours

Green: RAL 6018

Finish

Matte

Weight & Dimensions

Net weight

170 g

Total weight

220 g

Product dimensions

106.4x88x59mm / 4.19x3.46x2.32” (LxWxH), 6 division units

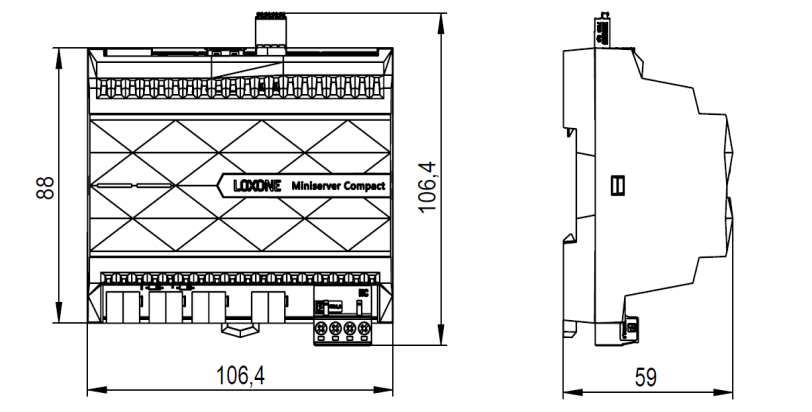

Product dimensions drawing

Pack size

122x116x63 / 4.80x4.57x2.48” (LxWxH)

Certifications & Standards

Operation

Type 1 (UL 60730-1, CSA E 60730-1)

Rated impulse voltage for digital output

2.5kV (UL60730-1, max. Altitude 2000m)

Degree of pollution

2

Software class

A

Certifications

UL 60730-1

CSA E60730-1
