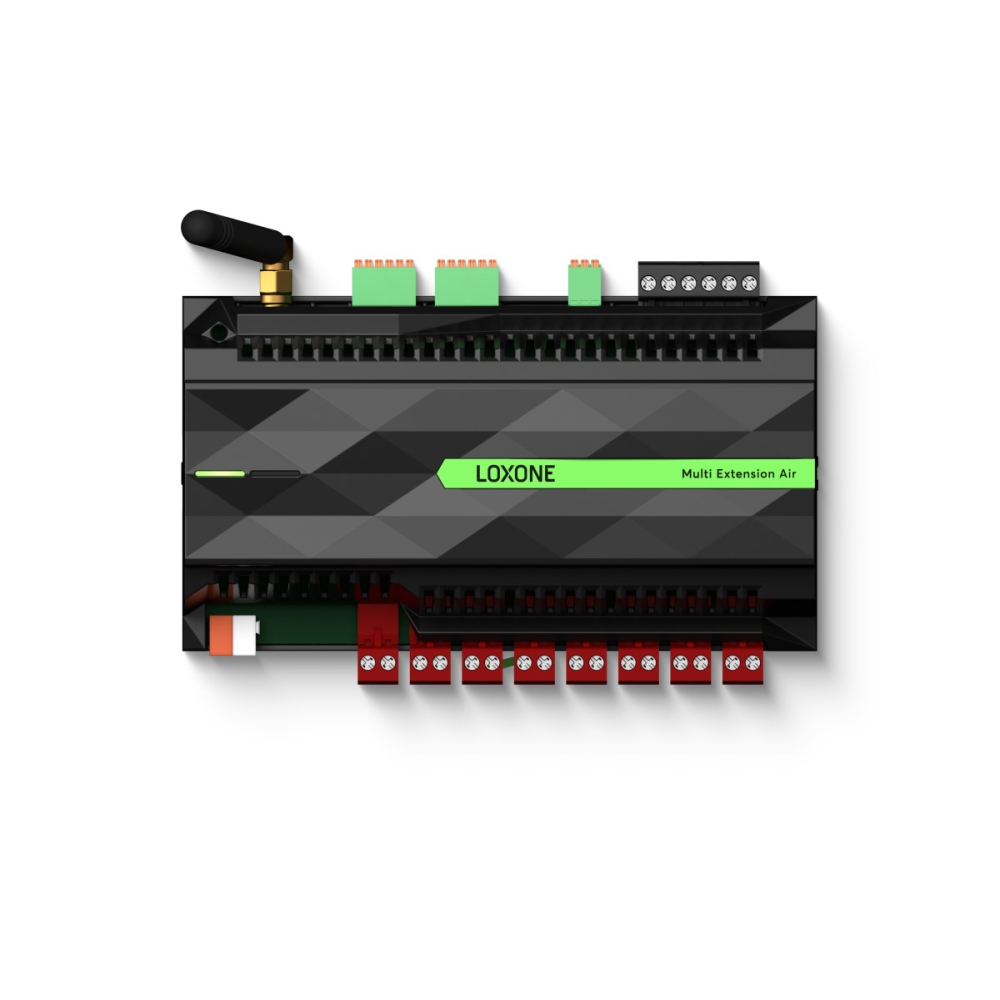

Loxone Multi Extension Air oferă 8 ieșiri cu relee bistabile fără potențial, 12 intrări digitale, o interfață cu 1 fir și 4 ieșiri PWM.

Features:

• Can be placed anywhere, making it the most versatile extension for retrofitting projects
• 12 digital inputs:
  • 0 - 28 VDC
  • Can be used as a frequency counter (max 200Hz)
• Outputs:
  • 8x digital: (relay), bistable, potential-free
  • 4x PWM: 2.1A per channel (12-28VDC)
• 1-Wire interface:
  • max. 20 sensors, (max. 50mA)

Technical details:

Supply voltage:

18 … 28 VDC

Product dimensions:

158 x 88 x 59 mm / 6.22 x 3.46 x 2.32” (L x W x H)

Electrical Specifications

Supply voltage

18 … 28 VDC

Power consumption

typ. 0.34 W, max. 1.74 W

Power loss at max. load

8.7 W

Inputs

Digital (12)

Logic 0: 0 … 2.2 VDC

Undefined: 2.2 … 3.8 VDC

Logic 1: 3.8 … 28 VDC

Useable as frequency counter:

- Max. frequency: 200 Hz

- Min. pulse width: 2.5 ms

- Accuracy: ± 1Hz

Outputs

Digital (8)

bistable, dry contact

max. 250 VAC 16 A at cos = 1 (IEC)

max. 250 VAC 15 A at cos = 1 (UL)

max. 30 VDC 5 A

total load max. 48 A

PWM (4)

2.1 A per channel, 12 … 28 VDC

PWM Frequency:

lighting: 123 Hz; control signal: 26 … 1627 Hz

Interfaces

Loxone Air

max. 128 devices

868 MHz (SRD Band Europe), 4 channels, max. 15.1 mW e.r.p.

915 MHz (ISM Band Region 2), 10 channels, max. 13.2 mW

SMA connector with 1.8 dBi stub-antenna

1-Wire

max. 20 sensors, max. 50 mA

or 1 iButton key reader

max. 100 ... 300 m wire length (depending on wiring topology)

Ambient Conditions

Temperature

-20 … 55 °C / -4 … 131 °F

Humidity

max. 95 % r. h. (non-condensing)

Ingress protection

IP20

Connection Terminals

Wire cross-section

0.05 … 2.5 mm² / AWG 30 … 12

Load > 12 A: min. 2.5 mm² / min. AWG 12

Stripping length

6 … 7.5 mm / 0.24 … 0.30”

Tightening torque

0.5 … 0.6 Nm / 0.37 … 0.44 lbf·ft

Temperature resistance

min. 80 °C / 176 °F for IEC,

min. 75 °C / 167 °F for UL

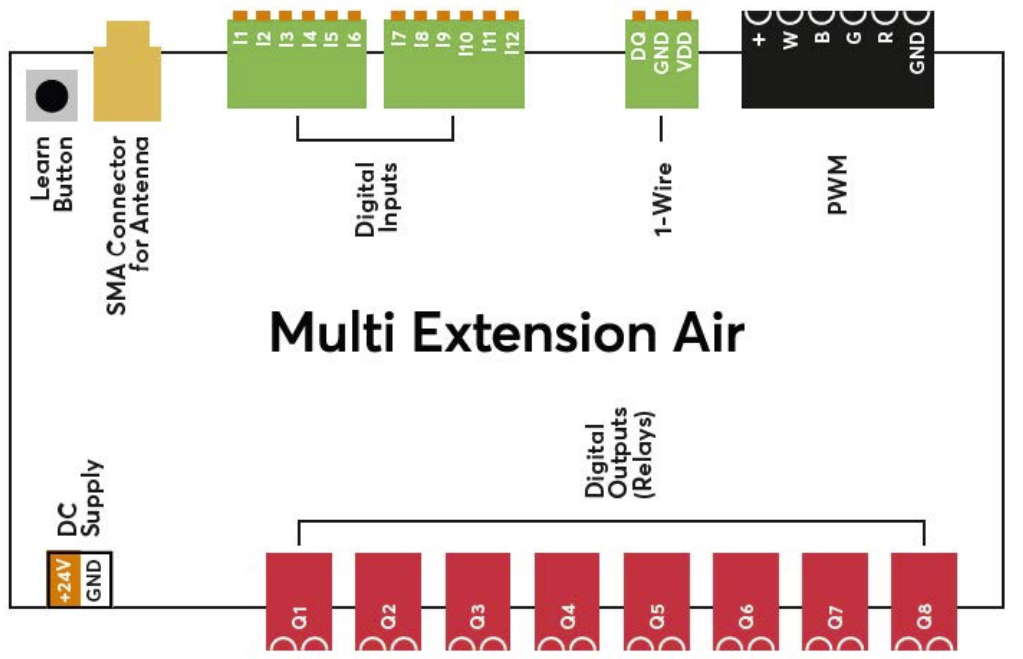

Connection Diagram

Connection Diagram

Product Characteristics

Mounting type

DIN rail according to EN 50022, 35 mm

Colours

Black: RAL 9005

Finish

Matte

Weight & Dimensions

Net weight

338 g

Total weight

412 g

Product dimensions

158 x 88 x 59 mm / 6.22 x 3.46 x 2.32” (L x W x H)

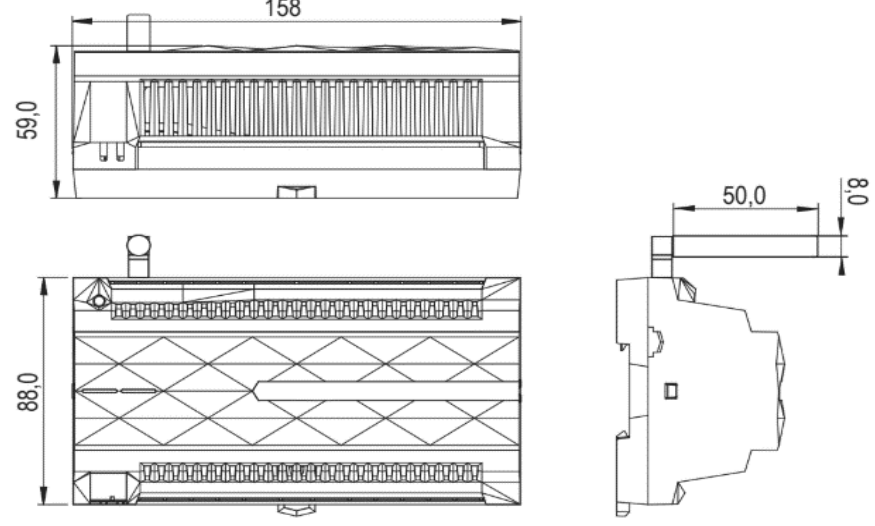

Product dimensions drawing

Pack size

180 x 110 x 65 mm / 7.08 x 4.33 x 2.56” (L x W x H)

Certifications & Standards

Operation

Type 1 (EN 60730-1)

Rated impulse voltage for digital output

2.5 kV (UL 60730-1, max. altitude 2000 m)

Degree of pollution

2

Standards

UL 60730-1

IEC 60730-1
